APSystems 1 Phase AC Bus kabel 4M

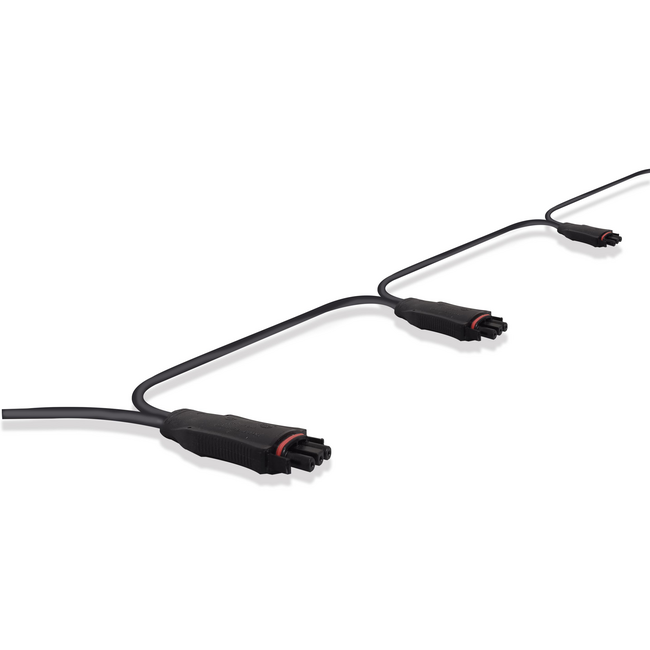

APSystems Y3 AC bus cable 4m

APSystems’ Y3 AC bus cable is used to connect the AC output of the microinverter to the mains power. The single-phase APS-Y3-AC-BUS-4 is only suitable for single-phase APSystems DS3 microinverters. A separate APS-Y3-AC-BUS-4 is required for each connection/Y connector. The distance between the DS3 microinverter Y connectors is 400cm and the 3-core cable has 2.5mm2 wires.

APS-Y3-AC-BUS-4 product data

• Single-phase
• 4m
• 2.5mm2
• 1 Y connector for DS3 series
• 23A
• IP67
