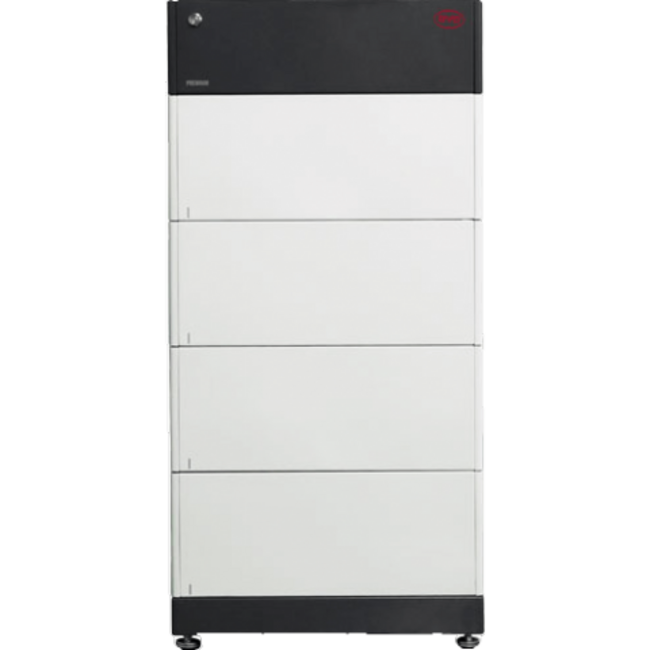

BYD Battery-Box HVM-11.0

BYD Battery Box HVM 11.0 + Base & Cover

The C-BYD-HVM-11.0 consists of four HVM battery modules of 38kg each and a base & cover. The universal BYD HVM Battery Box is an extremely flexible solution and suitable for both single-phase and three-phase high voltage inverters. A major advantage of these batteries is that they can be easily combined to form a larger storage system up to a maximum of 66.2kWh. The connection with the Real High Voltage series is a guarantee of high efficiency. The battery is manufactured using cobalt-free lithium iron phosphate (LFP), ensuring maximum safety, longevity and power. BYD has patented the modular plug design of this battery, which eliminates the need for internal wiring and offers maximum flexibility and ease of use.

The BYD Battery Box HVM 11.0 comprises:

• 4 x BYD Battery Box HVM 2.76kWh Battery module
• 1 x BYD Battery Box HVS/HVM Base & Cover

Advantages of the BYD Battery Box:

• Easy to expand
• Cobalt-free lithium iron phosphate (LFP) battery
• Long useful life
• Safe system

BYD Battery Box HVS/HVM - Base & Cover

The BYD BCU Battery Control Unit is compatible with all BYD HVS and HVM batteries and is supplied complete with base plate, cover, BCU and wall bracket. The BYD-HVS-Base-Cover is an essential accessory to the BYD high voltage battery system. For the HVS, a minimum of two modules is required per battery tower, with a maximum of four or five modules (depending on the inverter). For the HVM, a minimum of three or four modules is required per battery tower (depending on the inverter), with a maximum of eight modules. A maximum of three battery towers can be combined in a storage system.

C-BYD-HVM-11.0 product data

• 4 battery modules
• 11.04kWh
• 50A
• 75A, 5s
• 204V
• 160~240 V
• 167kg
• Dimensions 1228 x 585 x 298mm
