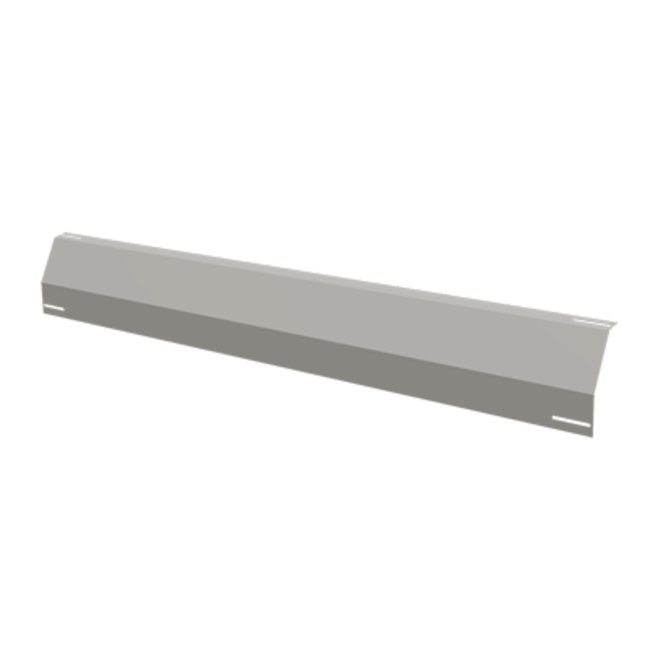

1007209 - Flatfix Fusion Rear wind deflector 1700mm

1007209 - Flatfix Fusion Rear wind deflector 1700mm
€11,05 Excl. tax
In stock

Esdec FlatFix Fusion Rear Weatherboard 1700mm for flat roofs. The wind deflector is mounted on a long mounting element on the back of the solar module and is also grounded. The first wind deflector must be installed behind the raised edge of the long moun Read more..

  • RUIME VOORRAAD

    Meer dan 1500 producten standaard op voorraad
  • GOEDE KLANTENSERVICE

    Klanten beoordelen ons met een 9.1/10

Esdec FlatFix Fusion Rear Weatherboard 1700mm for flat roofs. The wind deflector is mounted on a long mounting element on the back of the solar module and is also grounded. The first wind deflector must be installed behind the raised edge of the long mounting element. The grounding adapter is fixed to the mounting profile and the back of the air deflector via 6.5 x 19 mm mounting screws. Secure only one side of the air deflector to the long mounting bracket by threading the mounting screws into the ground adapter guide holes and through the two slots on the long mounting bracket. When tightening the screws in the mounting element, be careful not to damage the threads. The second rear fairing must also fit behind the raised edge of the long mounting element and slightly overlap the first fairing. Repeat these steps for the remaining weatherboards in the row. The FF100-7209 is available in a length of 1700 mm and is suitable for panel lengths from 1655 to 1795 mm.
