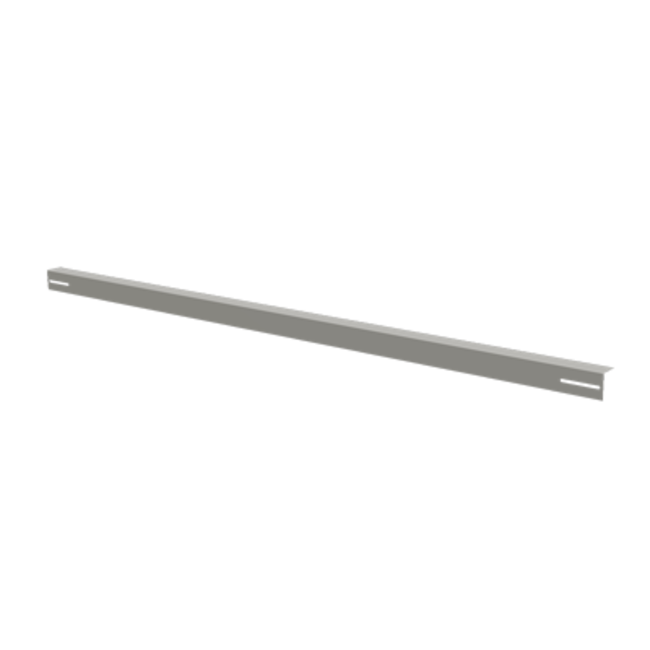

1007211 - Flatfix Fusion Stabiliser 1700mm

Esdec FlatFix Fusion stabilizers are used to strengthen mounting systems on flat roofs and are installed between two mounting profiles. Stabilizers can be grounded via overlap. The stabilizer is connected to the PV system via a ground adapter. Install the first stabilizer under the panel so that its bottom edge falls into the open notch of the long bracket and the sides of the stabilizer are flush with the edge of the long bracket. Secure one side of the stabilizer to the long mounting bracket using M6 x 12mm mounting screws. When tightening the screws in the mounting element, be careful not to damage the threads. Repeat the above steps to install the second stabilizer. Make sure the slot in the stabilizer overlaps the pilot hole in the long mounting element. The FF100-7211 is available in a length of 1700 mm and is suitable for panel lengths from 1655 to 1795 mm.
