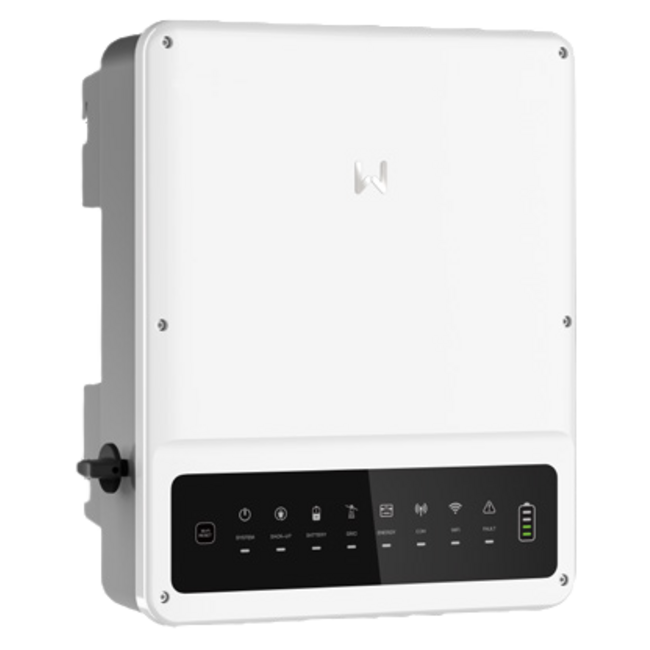

Goodwe GW5000N-EH Plus+

GoodWe 5000N-EH

The 5000N-EH 1-phase hybrid inverter from GoodWe is compatible with high-voltage batteries and has a wide battery voltage from 85V to 450V. In addition, it has an overload capacity of 20% and an automatic UPS function is integrated. The max. DC power of the GW5000N-EH is 7500W and the max. output current is 16A. Furthermore, this inverter provides protection against reverse polarity and has, among other things, AC overvoltage and short-circuit protection. What makes this hybrid inverter from GoodWe special is that it can still supply power to large loads even in backup mode. The GW5000N-EH is part of the EH Plus+ series and has a 5-year manufacturer's warranty. Both the energy meter and data cable for the battery and energy meter are included.

The GoodWe EH series is compatible with the following batteries: BYD HVS 5.1kWh-10.2 kWh, BYD HVM 8.3kWh-22.1 kWh & GW Lynx Home F.

Features of the GW5000N-EH

Li-Ion battery
1-Phase
5kW
High Voltage battery
2 MPPT 2 IN
Maximum apparent power 5500VA
WIFI
incl. GM3000 and 3 CTs
IP65
RS485 (WIFI/ Ethernet optional)
Dimensions 354 x 433 x 147mm
