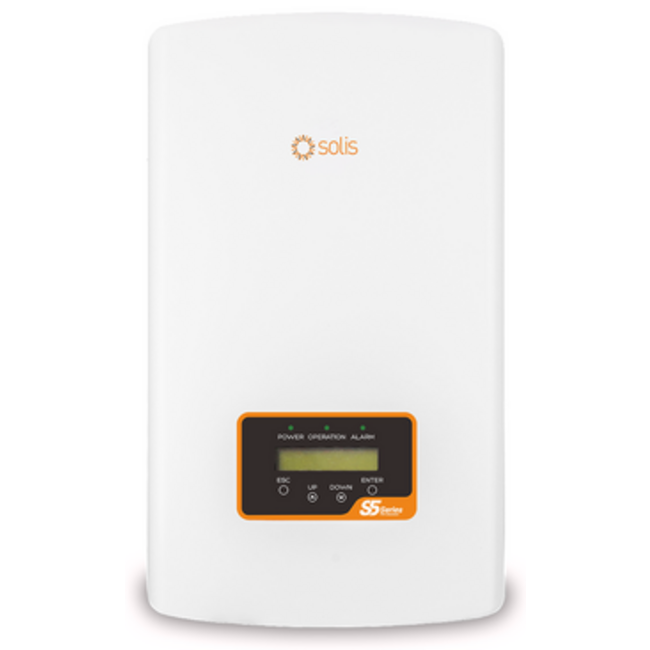

Solis 10K-S5

Solis 10K-S5

The Solis 10K-S5 three phase inverter is the perfect solution for both residential and small commercial and industrial PV systems. This inverter has a maximum input power of 15kW, a rated output power of 10K and a maximum efficiency of 98.5%. Two MPP trackers ensure a highly accurate tracking algorithm. The Solis 10K-S5 features high-frequency switching technology, a wide voltage range and a low start-up voltage. The three phase connection distributes the power over three cables. This inverter has integrated arc detection to prevent the risk of fires, and automatic voltage stabilisation technology protects against mains power fluctuations. The Solis 10K-S5 is part of the S5 series and comes with a 10-year manufacturer’s warranty.

Solis 10K-S5 product data

• Max. input power 15kW
• Max. input current 16A
• Max. output current 15.9A
• Max. efficiency 98.5%
• Three phase
• 2 MPPT 2 IN
• Integrated AFCI
• RS485 (Optional: WIFI/LAN/GPRS with Data logger).
• LCD display
• Weight 17.8kg
• Dimensions 310 x 563 x 219mm
