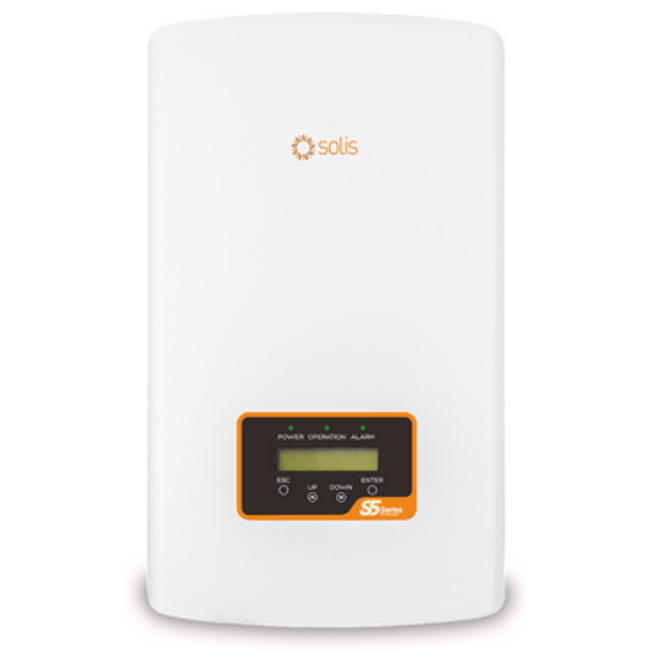

Solis 15K-S5

Solis 15K-S5

The Solis 15K-S5 three phase inverter is the perfect solution for both residential and small commercial and industrial PV systems. This inverter has a maximum input power of 22.5kW, a rated output power of 15K and a maximum efficiency of 98.6%. Two MPP trackers ensure a highly accurate tracking algorithm. The Solis 15K-S5 features high-frequency switching technology, a wide voltage range and a low start-up voltage. The three phase connection distributes the power over three cables. This inverter has integrated arc detection to prevent the risk of fires, and automatic voltage stabilisation technology protects against mains power fluctuations. The Solis 15K-S5 is part of the S5 series and comes with a 5-year manufacturer’s warranty.

Solis 15K-S5 product data

• Max. input power 22.5kW
• Max. input current 32A
• Max. output current 23.8A
• Max. efficiency 98.6%
• Three phase
• 2 MPPT 4 IN
• Integrated AFCI
• RS485 (Optional: WIFI/LAN/GPRS with Data logger).
• LCD display
• Weight 18.8kg
• Dimensions 310 x 563 x 219mm
