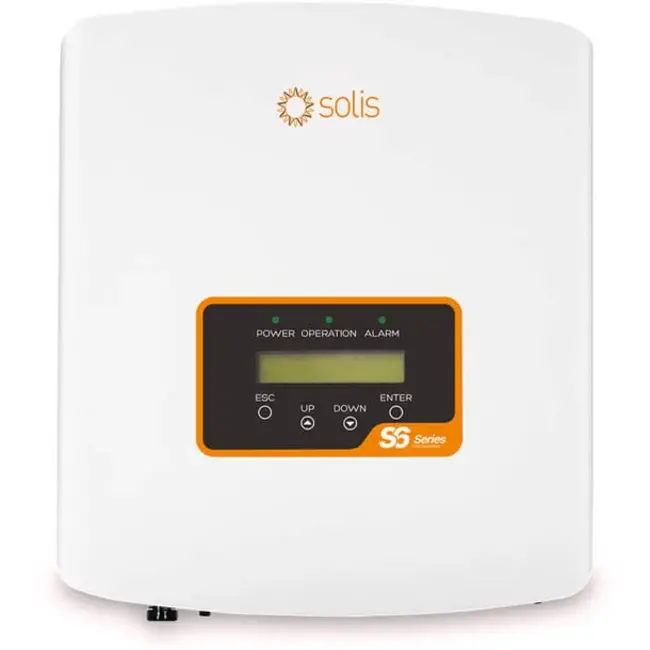

Solis mini-1000-S6

Solis mini 1000-S6

The Solis-mini-1000-S6 has a maximum DC output of 1.5kW and is a compact and lightweight inverter that is very easy to install, making it the ideal inverter for residential solar systems. This mini-inverter features high-frequency switching technology, a wide voltage range and a low start-up voltage, integrated arc detection and an export power manager (EPM).

Solis-mini-1000-S6 product data

• Max. DC output 1.5kW
• Max. input current 14A
• Max. output current 5.2A
• Max. efficiency 96.6%
• Single phase
• 1 MPPT 1 IN
• Integrated AFCI
• RS485 (Optional: WiFi/LAN/GPRS in combination with data logger).
• LCD display
• Weight 7.4kg
• Dimensions 310 x 373 x 160mm
• 10-year warranty (valid for the Netherlands, Belgium, France, Germany, Poland and Italy)
